MASTERSCREED MS575 Laser Screed
Please contact us to learn more about this product.

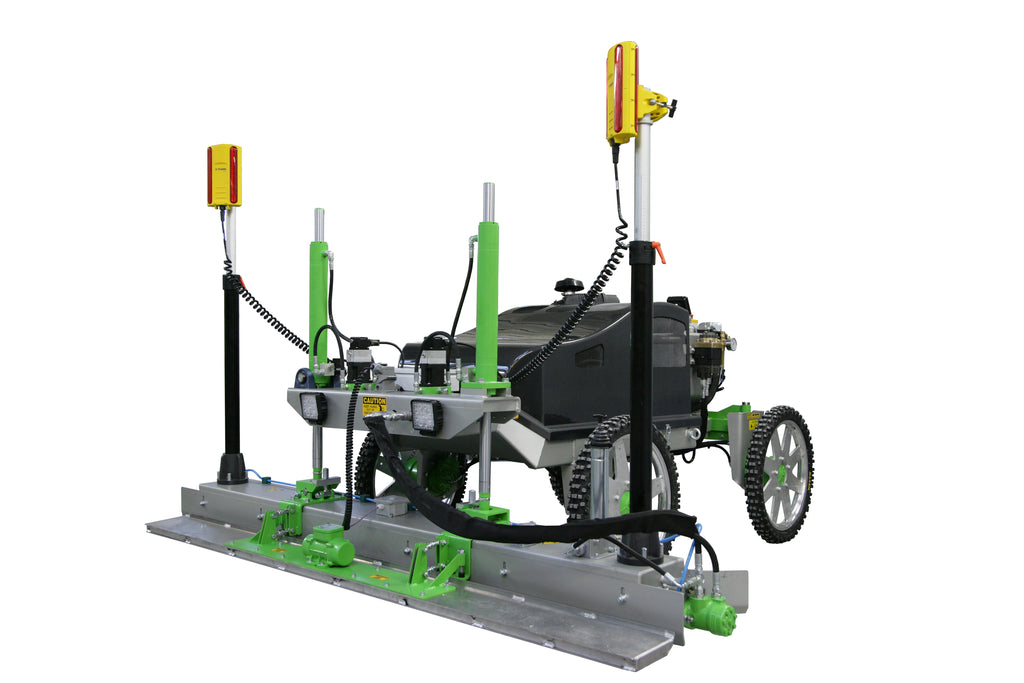

MASTERSCREED MS575 Laser Screed
Powerful, versatile and intelligent automated screed for use on many different applications.
The MS575 features include:
- Quick to set up
- Compact for easy manoeuvrability
- Lightweight for transport as they are constructed from premium aluminium, and now offer a carbon fibre cover.
- Easy to operate, in one function via wireless remote control and fitted with a pressure washer for easy and quick cleaning.
- The MS575 can be used on many applications including low/high slump concrete, SFRC (steel fibre concrete), single and double rebar mesh, and under floor water pipes and insulation.
- The MS575 uses the new LEVmaster(TM) MK5, an advanced operating system, with added features for fine tuning using the remote diagnostic for improved support and service worldwide.
Specifications:
- Engine: Vanguard 37HP EFI (27.6kw)
- Drive System: 4WD Hydraulic
- Steering System: Two Wheels Hydraulic (rear)
- Height: 4’ (1.2m)
- Width: 3’ 6” (1.05m) *Transport
- Length: 8’ 2” (2.45m)
- Weight: 1,270lbs (575kg) *Dry weight
- Fuel Tank: 6.6 Gallons (25L)
- Elevation Control: LEVmaster(TM) MK5 advanced operating system

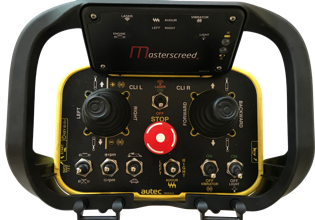

- Machine Operation Control: Wireless Remote
- Laser Receivers: Trimble® 2 x LR410
- 3D Ready: GPS & Sonar Tracer (optional)
- Pressure Washer: 2000psi (optional)
- Screed Width: 9’ 10” (3.0m) with auger
- Screed Head: New 2 in 1 versatile head with auger and double beam
- Made in Belgium
